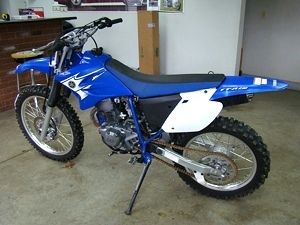

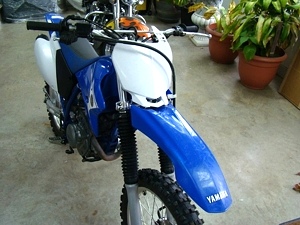

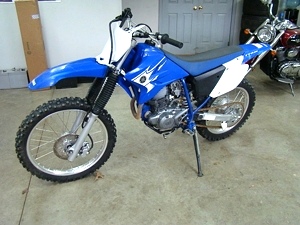

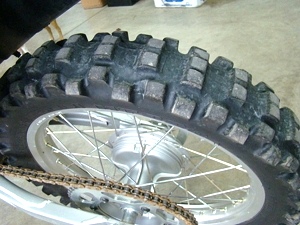

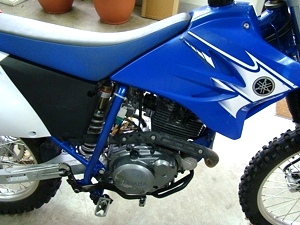

2007 YAMAHA TTR 230 USED DIRT BIKE FOR SALE. VERY GOOD CONDITION. RUNS AND RIDES GREAT. 4-STROKE ENGINE.VERY QUITE AND EASY TO RIDE. CALL 606-843-9889 DAYS OR 606-309-7595 NIGHTS.

General information

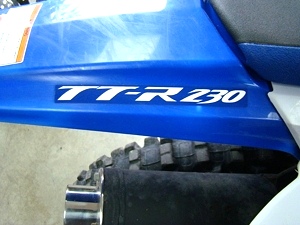

Model: Yamaha TT-R 230
Year: 2007
Category: Enduro / offroad

Engine and transmission
Displacement: 223.00 ccm (13.61 cubic inches)

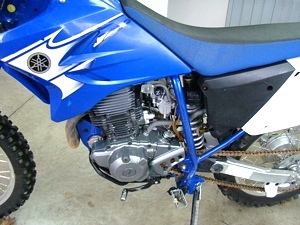

Engine type: Single cylinder
Stroke: 4
Compression: 9.5:1
Bore x stroke: 70.0 x 58.0 mm (2.8 x 2.3 inches)
Fuel system: Carburettor. 26mm Teikei
Fuel control: SOHC
Ignition: CDI
Cooling system: Air
Gearbox: 6-speed
Transmission type
final drive: Chain

Physical measures
Dry weight: 109.8 kg (242.0 pounds)
Seat height: 871 mm (34.3 inches) If adjustable, lowest setting.
Overall height: 1,181 mm (46.5 inches)
Overall length: 2,065 mm (81.3 inches)
Overall width: 800 mm (31.5 inches)
Ground clearance: 305 mm (12.0 inches)
Wheelbase: 1,384 mm (54.5 inches)

Chassis and dimensions
Front suspension: 36mm telescopic fork
Front suspension travel: 239 mm (9.4 inches)

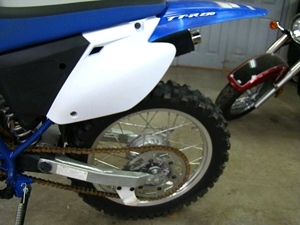

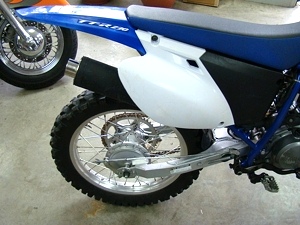

Rear suspension: Link-type single shock
Rear suspension
travel: 221 mm (8.7 inches)
Front tyre dimensions: 80/80-21
Rear tyre dimensions: 100/90-18

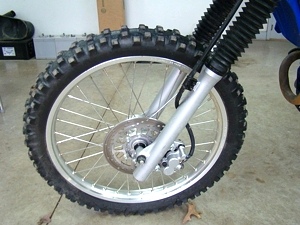

Front brakes: Single disc
Front brakes diameter: 220 mm (8.7 inches)
Rear brakes: Expanding brake (drum brake)
Rear brakes diameter: 130 mm (5.1 inches)

Other specifications
Fuel capacity: 7.94 litres (2.10 gallons)
